Information on 1933 era NZR carriage AA1783 now a lounge car

  • Running number:Aa1783 (TMS A50290)
  • Designed by:New Zealand Railways
  • Built at:NZR Otahuhu Workshops
  • Date built:1933
  • Builders diagram:25180
  • Date entered service:Nov 1933
  • Date withdrawn:November 1982
  • Returned to heritage operation:Jan 1984 to 2002
  • Current condition(2019): Refurbished and certified to operate on the main line.


Carriage details

  • Weight in working order:26 ton 7 hundredweight & 3 Qtrs as built
  • Overall length:52 feet 6 inches
  • Bogies:Originally 25140 SKF, now 25330 Timkin.


This carriage was built at Otahuhu Railway Workshops and was completed week ending 11th November 1933. It was a standard North Island 50 foot second class car catering for 44 passengers with Scarrett seats, had a toilet compartment at each end, covered vestibule connections, and rode on SKF roller bearing bogies.

Aa1783 was assigned to the Wellington District of NZR for use on Main Trunk and provincial expresses. During an extensive overhaul in 1947 it was fitted with steel anti-collision ends and new Timken roller bearing bogies. With the introduction of the 88 seater twin set railcars in the 1950's, Aa1783 saw less use on regular long distance trains. In the 60's and 70's it was used on Wellington suburban services. In 1975 the covered gangways were removed in keeping with its now suburban role.

On 16th November 1979, Aa1783 sustained damage to a vestibule end when a multiple unit collided with it in the Wellington yard. Fortunately it was sent to Addington for repairs and returned to service in Wellington in May 1980. In 1981 it was renumbered as part of the TMS renumbering to A50290.

Along with sister Steam Incorporated carriage Aa1757, Aa1783 had its last NZR journey on the 5.21pm carriage train from Wellington to Taita on 1st October 1982. After a year in storage it was purchased by Steam Incorporated and was first used by the society in January 1984.

During 2002 Aa1783 was withdrawn from excursion service as major repairs were required. With changing priorities the car was stored for several years awaiting a major rebuild.

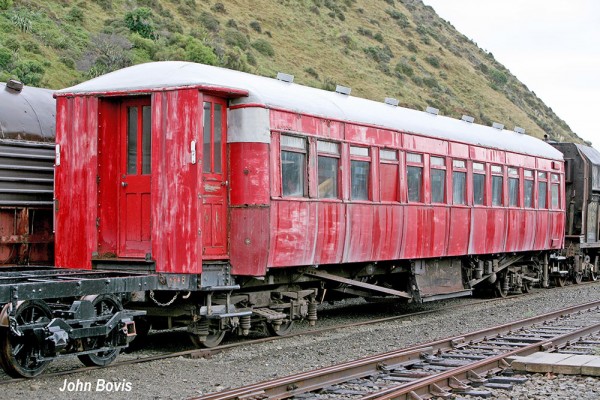

AA1783 before restoration

AA1783 before restoration as a lounge car

This eventually commenced in 2012 and was completed in 2018 being fitted out as a lounge car.  Certified for main line use in 2019.

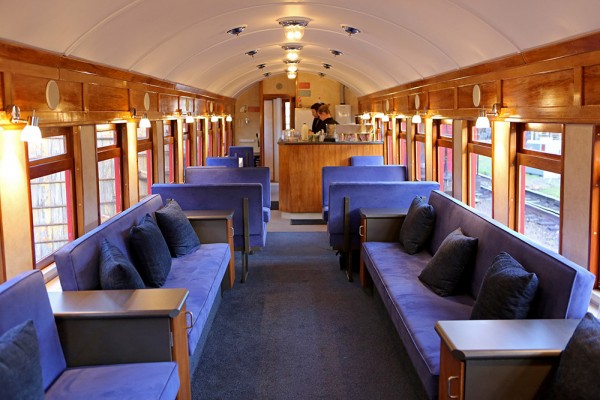

AA1783 Lounge car interior

Lounge car interior


AA1783 interior

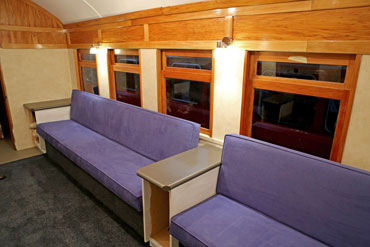

Lounge car sofas

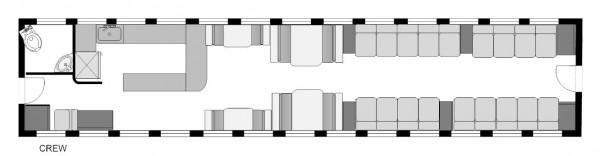

Seating diagram

Seating arrangement as a lounge car

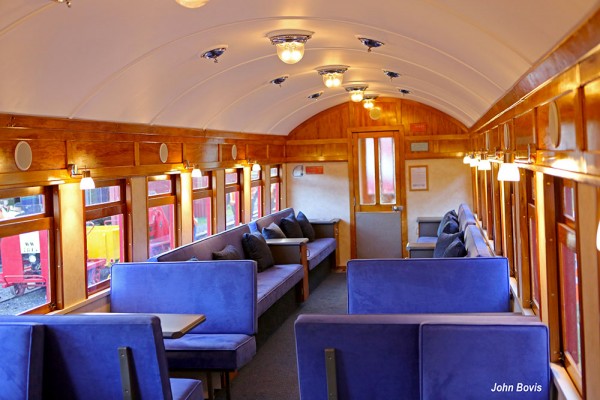

Lounge car interior

Lounge car interior


Thanks to Reid McNaught, Juliet Scoble and John Bovis for this information
